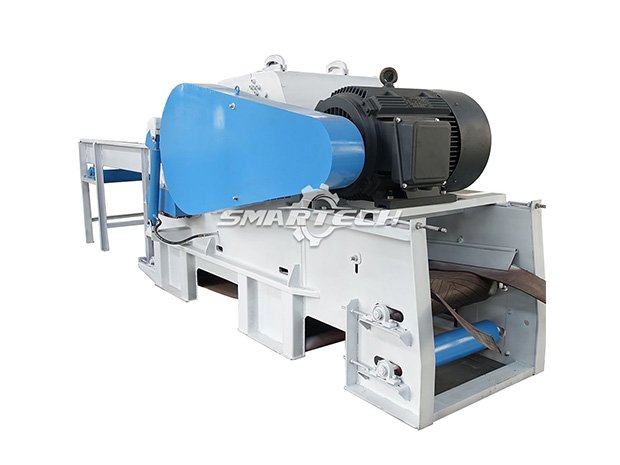

The drum wood chipper is composed of a machine base, a knife roll, an upper and lower feeding mechanism, a feeding device and a hydraulic buffering system, and is mainly used for crushing materials such as logs, small-diameter wood, branches, boards, slats, and bamboo .
The drum wood chipper is composed of a machine base, a knife roll, an upper and lower feeding mechanism, a feeding device and a hydraulic buffering system, and is mainly used for crushing materials such as logs, small-diameter wood, branches, boards, slats, and bamboo .
This series of wood chipper consists of frame, blade roller, upper and lower feed roller, conveyor belt, hydraulic system and other parts. Frame and shell are made of high strength steel plate welding, and there are fly blades installing on blade roller.
Upper feeding roller assembly can float up and down within the prescribed scope under effect of hydraulic, in order to achieve function of cutting raw materials with different thickness. Materials after cutting will discharge through screen hole, those which don’t meet the requirement will be cut again in machine until reaching standard.
The chipper machine can chop different raw materials to required size, such as: log, wood branch, veneer, bamboo, etc, widely used in the biomass pellet plant.Stable structure, high productivity and low processing cost
|
Model |
Power |
Capacity |
Chipper size |
|
SMT216 |
55 |
3-5 |
30*30*5 |
|
SMT218 |
110 |
6-10 |
30*30*5 |
|
SMT2113 |
315 |
15-25 |
30*30*5 |
