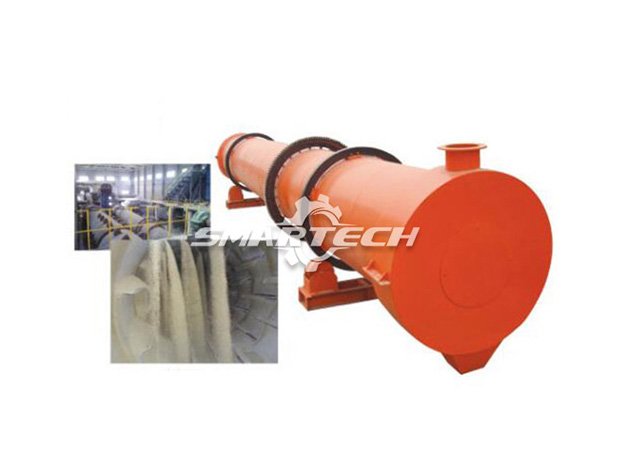

The rotary dryer is mainly composed of a cylinder body, a roller ring, a base retaining roller and a tail dust removing device. The hot air and the material are contacted in the cylinder body, and the material is designed to make the material and the hot air fully contact to achieve the drying effect.
The rotary dryer is mainly composed of a cylinder body, a roller ring, a base retaining roller and a tail dust removing device. The hot air and the material are contacted in the cylinder body, and the material is designed to make the material and the hot air fully contact to achieve the drying effect.
The design of the lifting plate in the cylinder is Multi-angle,so that the material forms a curtain in the cylinder.
The material and hot air contact surface is high, the thermal efficiency is high, and the drying effect is good.
The structure design is reasonable, which is conducive to maintenance
The material has a wide range of applications, can be used for the drying of powder, wood chips, silk materials, etc
|
Model |
Diameter |
Length |
Angle |
Speed |
Capacity |
Feed Temperature |
Outlet Temperature |
Motor Power |
|
HGS0.8x8 |
800 |
8000 |
2-5 |
5 |
1—1.5 |
150-250 |
30-60 |
5.5 |
|
HGS1.0x10 |
1000 |
10000 |
2-5 |
5 |
1.5-2.5 |
150-250 |
30-60 |
7.5 |
|
HGS1.2x12 |
1200 |
12000 |
2-5 |
4.7 |
2-3 |
150-250 |
30-60 |
11 |
|
HGS1.5x15 |
1500 |
15000 |
2-5 |
5 |
5-7 |
150-250 |
30-60 |
15 |
|
HGS1.8x18 |
1800 |
18000 |
2-5 |
3.9 |
7-10 |
150-250 |
30-60 |
22 |
|
HGS2.0x20 |
2000 |
20000 |
2-5 |
3.2 |
8-14 |
150-250 |
30-60 |
30 |
