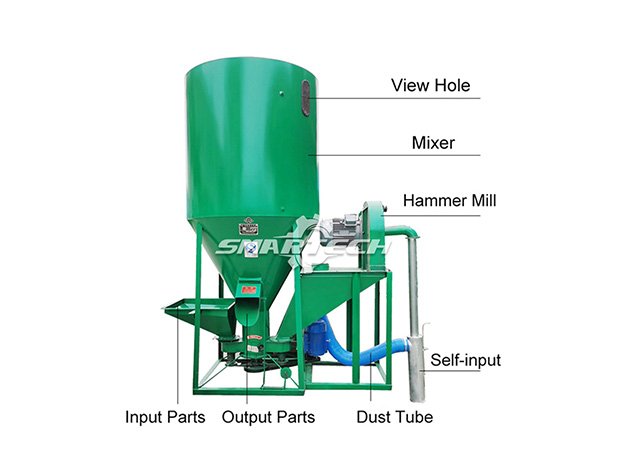

Self-grinding and mixer machine

SFSP hammer mill can do coarse crushing, and fine grinding, applicable in production of feed mill in high-grade animal feeds, aquatic feed, etc., can also be used for alcohol factory, citric acid factory and other.

Technical characteristics

Description

SFSP hammer mill can do coarse crushing, and fine grinding, applicable in production of feed mill in high-grade animal feeds, aquatic feed, etc., can also be used for alcohol factory, citric acid factory and other.

Features

1-The grinding chamber is water drop, effectively eliminate the phenomenon of circulation in the process of grinding, high yield;

2-The grinding chamber is arranged at the bottom of the "U" type two crushing mechanism, increase the number of material pounding and grinding particle size more uniform;

3-By adjusting the gap between hammer and screen for coarse grinding and fine grinding, one machine with double;

4-The exact rotor dynamic balancing device, low noise, stable operation;
Hammer blade made of hard alloy vacuum melting, long service life;

5-The key parts of the use of imported products. Long service life and low maintenance cost;

6-Shift open operation door, convenient maintenance and replacement of the hammer.

Performance Parameter
Model SFSP56*36 SFSP56*40 SFSP66*60 SFSP66*80 SFSP66*100 SFSP66*120
Power 22KW 37KW 55/75KW 110KW 132KW 160KW
Capacity 2-5T/H 3-7T/H 5-10T/H 8-15T/H 10-20T/H 15-30T/H
Speed 2980 r/min 2980 r/min 2980 r/min 2980 r/min 2980 r/min 2980 r/min
